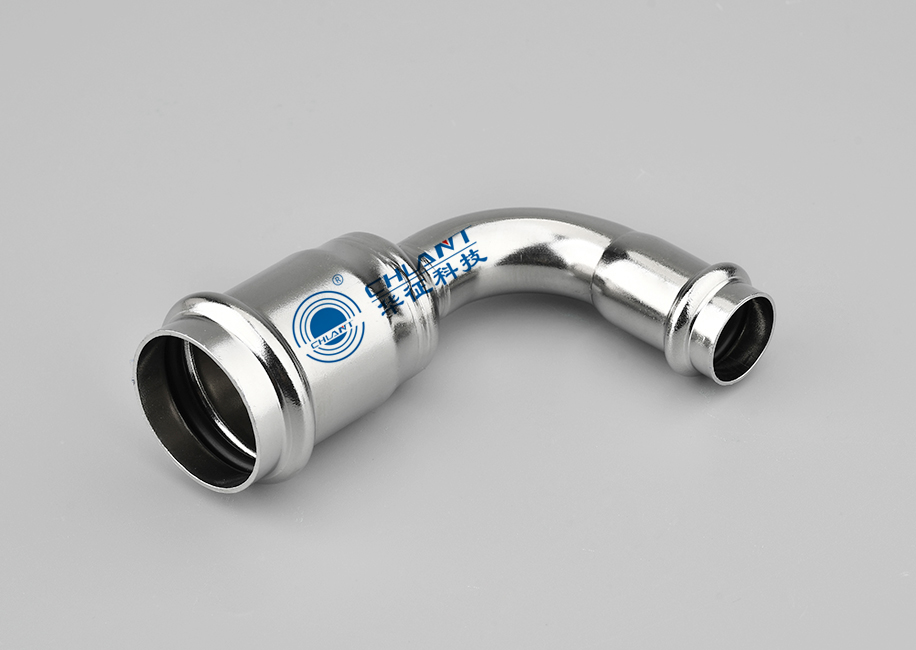

90°异径弯头规格参数
| 产品代码 |
公称尺寸DN |
I系列外径(mm) |
II系列外径(mm) |
| JF(E)-2015 |
20×15 |
20×16 |
22.2×15.88 |
| JF(E)-2515 |
25×15 |
25.4×16 |
28.6×15.88 |
| JF(E)-2520 |
25×20 |
25.4×20 |
28.6×22.2 |
| JF(E)-3215 |
32×15 |
32×16 |
34×15.88 |
| JF(E)-3220 |
32×20 |
32×20 |
34×22.2 |
| JF(E)-3225 |
32×25 |
32×25.4 |
34×28.6 |
| JF(E)-4015 |
40×15 |
40×16 |
42.7×15.88 |
| JF(E)-4020 |
40×20 |
40×20 |
42.7×22.2 |
| JF(E)-4025 |
40×25 |
40×25.4 |
42.7×28.6 |
| JF(E)-4032 |
40×32 |
40×32 |
42.7×34 |
| JF(E)-5015 |
50×15 |
50.8×16 |
48.6×15.88 |
| JF(E)-5020 |
50×20 |
50.8×20 |
48.6×22.2 |
| JF(E)-5025 |
50×25 |
50.8×25.4 |
48.6×28.6 |
| JF(E)-5032 |
50×32 |
50.8×32 |
48.6×34 |
| JF(E)-5040 |
50×40 |
50.8×40 |
48.6×42.7 |
