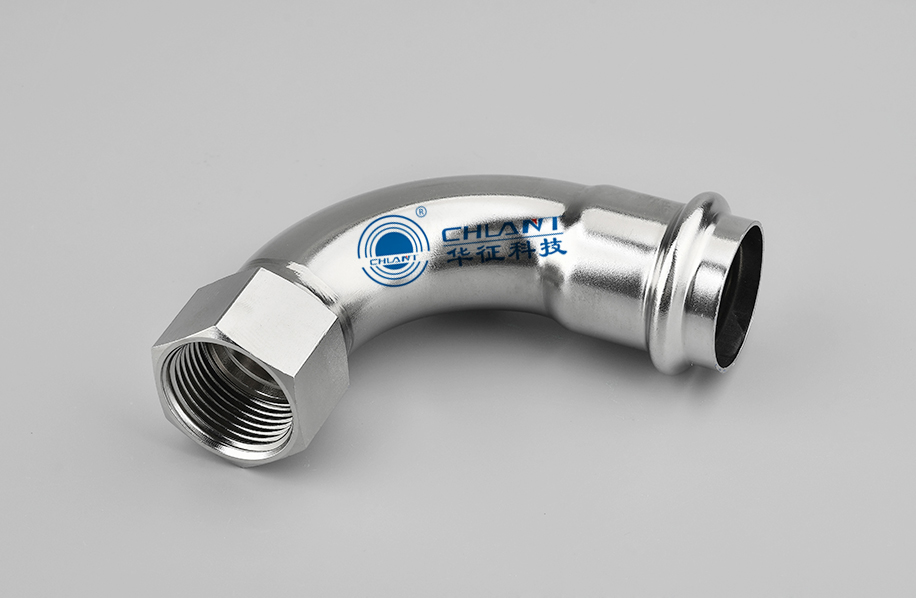

内螺纹长弯头规格参数
| 产品代码 |
公称尺寸DN |
I系列外径(mm) |
II系列外径(mm) |
| JFITC90E-1501 |
15×Rp1/2" |
16×Rp1/2" |
15.88×Rp1/2" |
| JFITC90E-2001 |
20×Rp1/2" |
20×Rp1/2" |
22.2×Rp1/2" |
| JFITC90E-2002 |
20×Rp3/4" |
20×Rp3/4" |
22.2×Rp3/4" |
| JFITC90E-2003 |
20×Rp1" |
20×Rp1" |
22.2×Rp1" |
| JFITC90E-2501 |
25×Rp1/2" |
25.4×Rp1/2" |
28.6×Rp1/2" |
| JFITC90E-2502 |
25×Rp3/4" |
25.4×Rp3/4" |
28.6×Rp3/4" |
| JFITC90E-2503 |
25×Rp1" |
25.4×Rp1" |
28.6×Rp1" |
| JFITC90E-3201 |
32×Rp1/2" |
32×Rp1/2" |
34×Rp1/2" |
| JFITC90E-3203 |
32×Rp1" |
32×Rp1" |
34×Rp1" |
| JFITC90E-3204 |
32×Rp1-1/4" |
32×Rp1-1/4" |
34×Rp1-1/4" |
| JFITC90E-4001 |
40×Rp1/2" |
40×Rp1/2" |
42.7×Rpl/2" |
| JFITC90E-4004 |
40×Rp1-1/4" |
40×Rp1-1/4" |
42.7×Rp1-1/4" |
| JFITC90E-4005 |
40×Rp1-1/2" |
40×Rp1-1/2" |
42.7×Rp1-1/2" |
| JFITC90E-5001 |
50×Rp1/2" |
50.8×Rp1/2" |
48.6×Rp1/2" |
| JFITC90E-5002 |
50×Rp3/4" |
50.8×Rp3/4" |
48.6×Rp3/4" |
| JFITC90E-5003 |
50×Rp1" |
50.8×Rp1" |
48.6×Rp1" |
| JFITC90E-5005 |
50×Rp1-1/2" |
50.8×Rp1-1/2" |
48.6×Rp1-1/2" |
| JFITC90E-5006 |
50×Rp2" |
50.8×Rp2" |
48.6×Rp2" |
